Springfield Echelon Review (2026): 1,000 Round Test

Last updated and checked October 28, 2026 · By Nick Hall, who put 1,000+ rounds through the Springfield Echelon for this review

Affiliate Disclaimer: This article contains affiliate links. If you buy through our links you’ll get the best deal and we get to keep producing articles like this Springfield Echelon Review.

Quick Answer: The Springfield Echelon is a striker-fired 9mm built around a serialized stainless chassis, the Central Operating Group (COG), so the grip module is a swappable part. Its Variable Interface System (VIS) mounts 32 red dots straight to the slide with no adapter plate, per Springfield’s fitment chart. The 4.5F I tested lists at $710 and sold from $589.99 at Midway USA on October 28, 2026; the cheapest way in is the Echelon Alpha 4.0C, from $478.06.

After a 1,000-round test the Echelon ran reliably across mixed brass and steel-cased ammo. The 4.5F has a 4.5-inch hammer-forged barrel, ships with a 17-round and a 20-round magazine, and weighs 23.9 oz with the flush magazine. The trigger averaged 4.5 to 5 pounds on my gauge with a clean wall.

Springfield now builds six Echelon models: Alpha 4.0C, 4.0C, 4.0FC, 4.5F, Comp and Pro. Buy the one that matches your use, because most owners never swap the grip module. If you only want one frame, the Echelon competes with the Glock 17 Gen 6 and Walther PDP, and it beats both on optic mounting.

Table of Contents

For years, the polymer striker-fired market has been a game of “catch the Glock.” Most manufacturers just copy the homework, change the grip angle, and call it a day. The Springfield Echelon is different.

Springfield didn’t just iterate on the XD series. The XD-M Elite is still in the catalog, but the Echelon is a separate, ground-up design built around a modular chassis, like the Sig P320, with a better optic mount. Like the XD line, it is made by HS Produkt in Croatia; the slide is marked “HS PRODUKT, MADE IN CROATIA”.

I’ve spent some serious time with this platform, and I can tell you right away: it feels like a duty gun should. It’s big, it’s controllable, and it is incredibly modular. If you are a first-time buyer looking for a “do-it-all” home defense pistol, or a seasoned shooter wanting to retire your old Glock 17, this deserves your attention.

Quick Take: A New Standard for Duty Pistols

The Springfield Echelon solves the biggest problem with modern pistols: optic mounting. By allowing you to mount a red dot directly to the slide without adapter plates, it offers a lower, more reliable sight picture than almost any competitor. It is reliable, modular, and priced aggressively against the Glock 17.

USA Gun Shop Rating: 9.1/10

Category	Rating	Notes
Reliability	9.5/10	Flawless feeding with duty and range ammo over 1,000 rounds.
Value	9/10	Tritium front sight, 17- and 20-round mags, and direct mounting for 32 optics.
Accuracy	8.5/10	Consistently hits 2-inch groups at 25 yards; better than average duty guns.
Features	10/10	VIS optic system and COG chassis are industry-leading innovations.
Ergonomics	9/10	“Adaptive” grip texture is excellent; controls are fully ambidextrous.
Fit & Finish	8/10	Billet-machined slide is premium; the Melonite barrel hood shows wear marks early.

Best For: First-time buyers who want an optic-ready home defense gun without the hassle of buying extra adapter plates or custom milling. It’s like a customized Glock 17, straight off the shelf.

Quick Specs

• Caliber: 9mm
• Capacity: 17+1 (flush) / 20+1 (extended), both magazines in the box
• Barrel: 4.5″ hammer-forged steel, Melonite finish, 1:10 twist
• Weight: 23.9 oz with flush magazine (24.3 oz with extended)

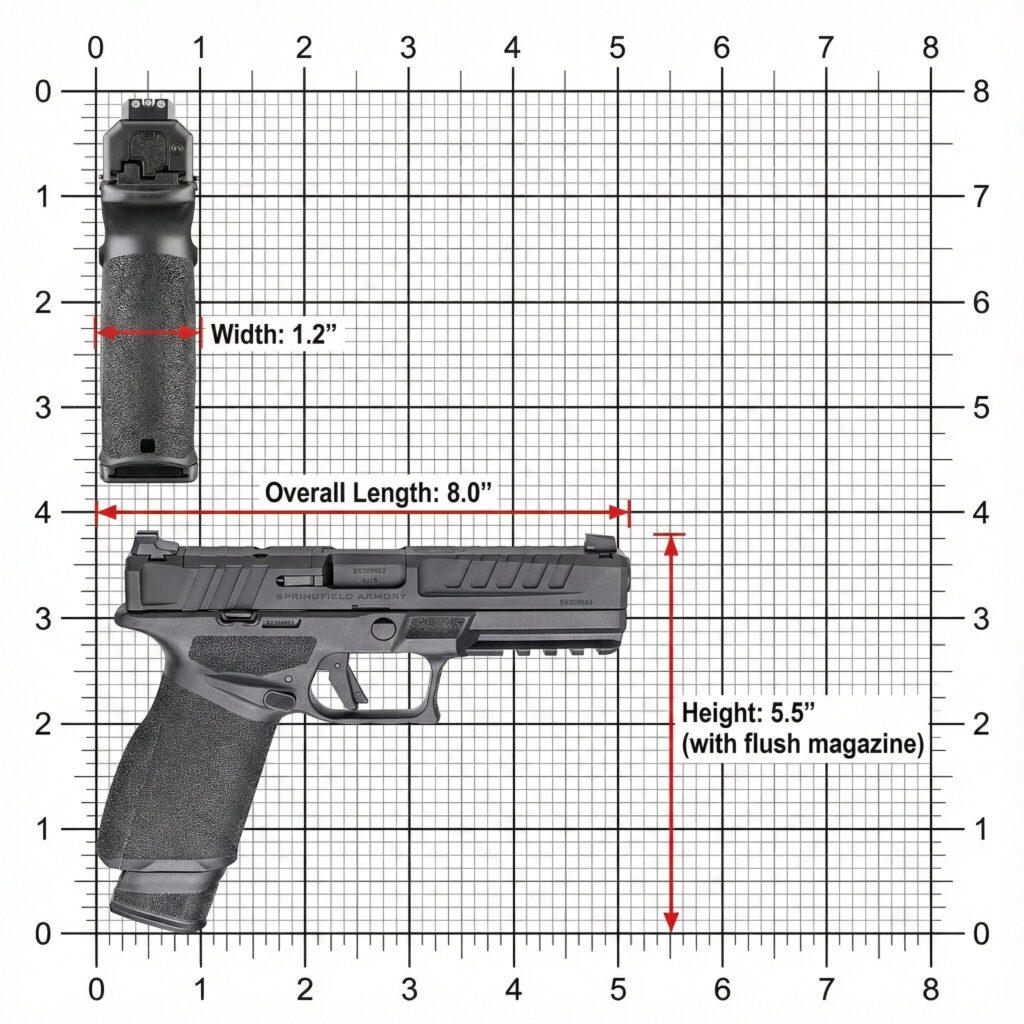

• Size: 8″ long, 5.5″ tall with flush magazine, 1.2″ grip width
• Sights: Tritium/luminescent front, Tactical Rack U-Dot rear
• Action: Striker Fired (Central Operating Group)
• Optic Ready: Yes (Variable Interface System)
• MSRP: $710 (EC9459B-U); from $589.99 at Midway USA on October 28, 2026
• Made by: HS Produkt, Croatia, for Springfield Armory (Geneseo, Illinois)

Springfield Echelon vs. Competitors

Glock 17 Gen 6 ($620 at Midway USA) The Glock is the benchmark for reliability, but the Echelon beats it on features. The Glock 17 requires adapter plates for optics (which can fail), while the Echelon mounts optics directly to the slide. The Echelon also comes with better sights and a better trigger out of the box, though Glock still wins on cheap magazines and aftermarket parts availability. Check out more Glock rivals here.

Springfield Armory Echelon vs Sig P320 XFull (from $727.32) Both guns use a modular chassis (FCU vs. COG), but the Echelon feels tighter. The Sig has a higher bore axis, making it feel “snappier” during rapid fire compared to the Echelon’s low-seated slide. The Echelon’s optic system is also far superior to Sig’s footprint-specific cuts, although the Sig Sauer M18 is a tougher challenge and one you might want to consider..

Echelon vs Walther PDP (from $579.84) The Walther PDP has the best trigger in the class, hands down; it’s slightly crisper than the Echelon, and it is the one rival here that costs less. However, the PDP is “chunkier” and has more felt recoil. If you prioritize the absolute best trigger, go Walther. If you want a flatter shooting gun with a better optic system, go Springfield.

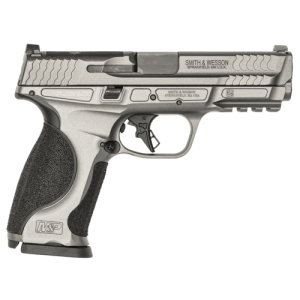

Smith & Wesson M&P 2.0 Metal (from $830.99) The S&W Metal is a fantastic, flat-shooting gun, but it costs significantly more. The Echelon gives you similar performance and capacity for $241 less ($589.99 vs $830.99 on October 28). Unless you specifically want an all-metal frame, the Echelon is the better value buy here.

Verdict: If you want a gun that is ready for a red dot immediately without buying plates, the Springfield Echelon is the superior choice. While the Glock 17 is a safer “known quantity,” the Echelon offers modern features, like direct optic mounting and modular grips, that make the Glock feel dated by comparison.

The Features: COG & VIS Explained

The Springfield Echelon relies on two main acronyms that actually matter: the COG and the VIS.

The Central Operating Group (COG)

This is the heart of the gun. The COG is a self-contained stainless steel chassis that houses the trigger group and slide rails. Because this chassis is the serialized part (the legal “firearm”), the polymer grip module is just a piece of plastic.

This means you can change grip sizes (Small, Medium, Large) or move the COG into a different frame without buying a new gun. Springfield even sells the COG on its own (MSRP $295) for builders. It’s similar to the Sig P320, but I found the Echelon’s chassis feels tighter inside the frame; there’s no wobble here.

The Variable Interface System (VIS)

This is the best feature on the gun, hands down. Most optic-ready pistols require you to buy expensive adapter plates to mount a red dot. These plates add height (which is bad) and introduce more failure points.

The VIS uses movable pins in the slide, arranged in three pin sets. Springfield’s VIS fitment chart lists 32 optics that mount straight to the slide: 16 on pin set 1 (Trijicon RMR and SRO, Holosun 507C-X2, 508T, 507K and EPS), 5 on pin set 2 (Leupold DeltaPoint Pro, SIG ROMEO2, EOTECH EFLX) and 11 on pin set 3 (Shield RMSc and RMSX, Vortex Defender). This keeps the optic low enough that you can often use the standard iron sights as a backup.

Two footprints still need a plate. The Aimpoint ACRO, Steiner MPS and Viridian RFX45 mount with the VIS ACRO plate, and Docter-footprint dots such as the Burris FastFire and Vortex Viper use the VIS Docter plate. A plate can lift a closed-emitter dot high enough to lose the co-witness with the factory irons, so plan on taller sights if you go that route.

Range Time: 1,000 Rounds Later

Specs are great, but they don’t mean much if the gun chokes. I took the Echelon to the range to see if it could actually dethrone the Glock 17.

Reliability

I ran a mix of ammo through this, starting with cheap 115gr Blazer Brass for bulk shooting and moving up to 124gr +P Federal HST and Hornady Critical Duty.

The result? It ate everything. In the first 500 rounds, I didn’t experience a single failure to feed or stovepipe. Even when the gun got hot and dirty, the extraction was positive. The ejection pattern is consistent, it flings brass to the right at a predictable angle, not in your face.

Shootability

The Echelon sits very low in the hand. This “low bore axis” means the recoil pushes straight back rather than flipping the muzzle up. Compared to a Sig P320, it feels flatter. Compared to a Glock 17, it feels slightly softer, likely due to the ergonomics of the grip allowing for a higher purchase.

Accuracy

At 25 yards from a rest, I was able to get groups hovering around 2 inches using Hornady Critical Duty ammo. At practical defensive distances (7 to 10 yards), it’s a “one ragged hole” gun. The U-Dot sights are fast to acquire, though I highly recommend slapping a red dot on this thing immediately.

Common Problems & Issues

No gun is perfect, and the Echelon has a few quirks you should know about before buying.

• Magazine Compatibility: These magazines look like XD magazines, but they are proprietary. You cannot use your old XD or Hellcat mags here. Spares are not expensive, though: a factory 20-round Echelon magazine was $31.18 at Sportsman’s Outdoor Superstore and $32.99 at GunMag Warehouse on October 28.
• Barrel Wear: The Melonite (a nitride) finish on the barrel hood showed bright wear marks within the first few hundred rounds where it rubs the slide. It’s purely cosmetic and happens on every tilting-barrel pistol, but it shows sooner on this black finish.

Who Should NOT Buy This Gun

While the Echelon is fantastic, it isn’t for everyone.

• Concealed Carry Users: This is a full-size duty gun. If you are looking for a summer carry piece, get a Hellcat Pro or Glock 43X. The Echelon is too large for most people to hide under a t-shirt.
• Budget Shoppers (Long Term): The gun is priced well, but the holster and parts market is smaller than Glock’s, so you have fewer cheap options. These are not cheap guns to own.
• Small-Handed Shoppers: Even with the small grip module, the double-stack 9mm frame is substantial. If you struggle to reach the trigger on a Glock 17, this won’t fix that.

Different Versions of the Echelon

The Echelon 4.5F I tested is still the flagship, but Springfield now lists six models in three sizes. Every one is 9mm with the same COG and VIS optic cut; prices below are Springfield’s MSRP and the lowest live price in our feed on October 28, 2026.

• Echelon Alpha 4.0C ($599 MSRP, from $478.06): The entry model. 4-inch barrel, small grip module, one 15-round stainless magazine and a white-dot front sight instead of tritium.
• Echelon 4.0C ($710 MSRP): Compact slide and grip for carry, 15- and 18-round magazines, 7.25 inches long and 5.125 inches tall.
• Echelon 4.0FC ($710 MSRP, from $619.99): Compact 4-inch slide on the full-size grip, so it takes the 17- and 20-round magazines. Springfield also lists a 4.0FC with a manual thumb safety.
• Echelon 4.5F ($710 MSRP, from $589.99): The full-size gun in this review.
• Echelon Comp 4.5F ($784 MSRP, from $662.99): Ported barrel and an integral compensator cut into the slide to cut muzzle rise.
• Echelon Pro ($899 MSRP): Compensated slide in Springfield Grey Cerakote, LightForged frame, flared magwell, metal guide rod and three 20-round magazines; offered in 4.0C, 4.0FC and 4.5F.

Upgrades, Parts & Accessories

Because the serialized part is the Central Operating Group (COG), the rest of the gun is open to upgrades, much like the Sig P320.

• Grip Modules: Because the serial number is on the chassis, you can swap the polymer grip frame for a different size, or move to a heavier aftermarket frame for competition.
• Optics: Thanks to the VIS system, you don’t need plates for 32 optics. We recommend the Holosun 507C-X2 for a budget-friendly option or the Trijicon RMR for duty use. Both mount directly on pin set 1.
• Holsters: Since this is a duty-sized gun, look for quality OWB holsters from brands like Safariland or Echelon-specific IWB and OWB holsters from Alien Gear.

Spare magazines are the first thing to buy. Here are today’s prices on factory Echelon magazines:

Best Home Defense Setup

If you are buying the Echelon for nightstand duty, here is the “Buy Once, Cry Once” setup:

• Optic: Holosun 507C-X2 or Trijicon RMR (mount directly on VIS pin set 1).
• Light: Streamlight TLR-1 HL (1,000 lumens on the accessory rail).
• Ammo: Federal HST 124gr (Feeds reliably and offers expanding terminal performance).
• Storage: A quick-access safe like the Vaultek Slider, as this gun is too big to leave unsecured on a table.

Aftermarket & Ecosystem Reality Check

You can buy the gun today, but can you buy the gear?

• Holsters: Major players like Safariland (duty) and Alien Gear (civilian) support it, but you won’t find cheap generic holsters at every gun show yet.
• Magazines: Availability is good online, but don’t expect to find them in every mom-and-pop shop like you can with Glock mags.
• Parts: Springfield sells the COG ($295 MSRP), VIS pin sets, screw kits and the ACRO and Docter plates direct, but the aftermarket is still far smaller than the P320’s.

Springfield Echelon by the Numbers

• 6 Echelon models in Springfield’s catalog (Alpha 4.0C, 4.0C, 4.0FC, 4.5F, Comp, Pro)
• 32 red dots mount with no plate on the VIS fitment chart, across 3 pin sets
• $710 MSRP for the 4.5F; $589.99 lowest live price on October 28, 2026
• $478.06 for the Alpha 4.0C, the cheapest Echelon in our feed
• 23.9 oz with the flush 17-round magazine; 20+1 with the extended magazine
• $31.18 for a factory 20-round magazine
• 1,000+ rounds through my test gun

Springfield Echelon Review: Final Verdict

Overall Score: 9.1/10

The Springfield Echelon is not just another polymer pistol; it is a serious evolution. It takes the modularity of the Sig P320 and the reliability of the Glock 17, then adds an optic mounting system that beats them both.

If you are a first-time buyer looking for a home defense handgun that you can grow into, this is it. It’s ready for a red dot, it’s easy to shoot, and it holds 21 rounds of 9mm with the extended magazine. If you want it smaller or cheaper, the 4.0FC and the Alpha 4.0C keep the same COG and optic system.
